Little GIANT®

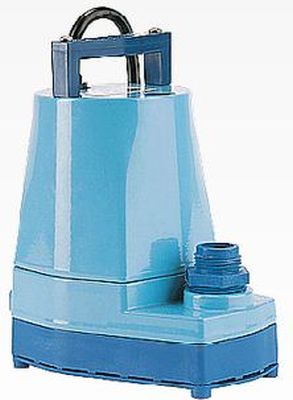

5-MSP 115v 1/6hp PUMP UTILTY SUBMERSIBLE

Item #LIT505025
Available

Little Giant Utility Pump, Series: 5 Series, 1200 gph, 1 in FNPT Outlet, 1/6 hp, 115 VAC, 5 A, 60 Hz, 1 ph, 11.4 psi Maximum, 120 deg F

Features

  • 1/6 hp shaded pole motor with overload protection
  • Designed for continuous duty
  • Pumps down to 1/8 in
  • Removable inlet screen for easy cleaning
  • Multiple switch options for automatic operation
  • 1200 gph at 1 ft H
  • 10 ft cord
  • 380 W
  • 520 gph at 20 ft H
  • 26.3 ft shut-off
Application
For commercial, industrial and home uses where water must be transferred/recirculated

Certification/Standards
cCSAus Certified

Manufacturer:  Franklin Electric
Brand:  Little Giant

UPC:  010121051768
UNSPSC:
  40151512
Other Part Numbers:  505176 ; 010121051768 ; 01012105176 ; 10121051768

Keywords
505176 Utility Pump, 1200 gph Flow Rate, 1 in FNPT Outlet, 1 ph, 1/6 hp ; Franklin Electric ; Little Giant ; 505176 ; 010121051768 ; Submersible Sump Pumps

Amps5 AC
Base MaterialNylon
BrandLittle GIANT®
Cord Length18'
Diameter6-1/8"
Discharge NPT1"
Height7-3/4"
Horsepower1/6 hp
HousingAluminum
Impeller MaterialNylon
Length6-1/16"
Maximum Head26'
Maximum Liquid Temperature120° F
Motor HousingOil Filled Cast Aluminum
ProductSubmersible Utility Pump
Shaft MaterialViton
Shaft SealViton
Switch TypeManual
Top MaterialCast Aluminum
Voltage115
Width4-5/16"
