Johnson®

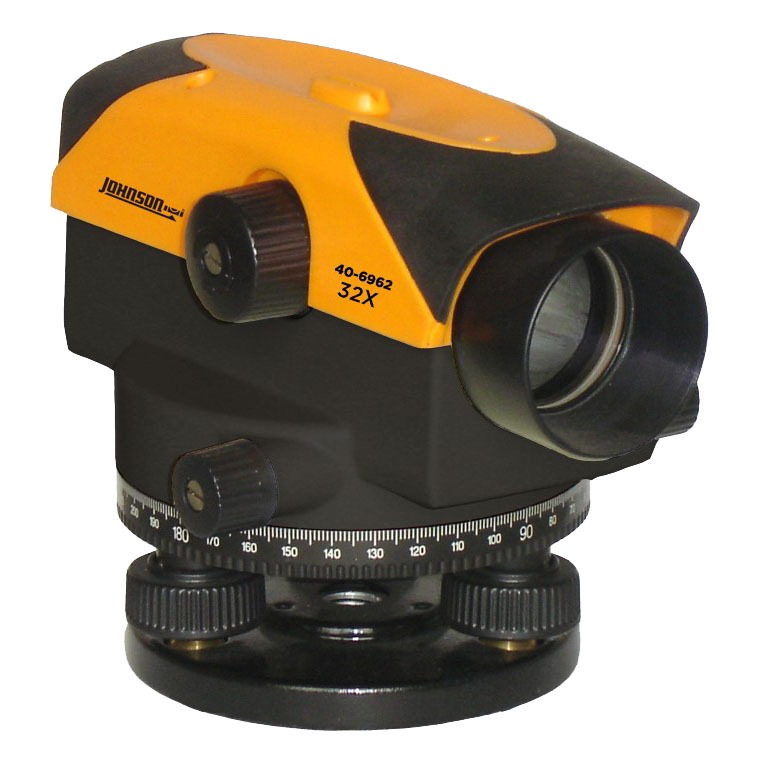

360 HORIZONTAL TOP-MOUNT PRISM LEVEL OPTICAL

Item #JOH40-6962

Make your next outdoor job faster and more accurate with this automatic level featuring Johnson most powerful 32x lens for maximum magnification. This easy-to-use level features a large, ergonomic focusing knob, prism for viewing the bubble and top mounted quick-sight for easy viewing of your grade rod. Accuracy is never an issue with this automatic level - it's equipped with fine adjustment knobs, focusable cross-hairs, 360 deg horizontal circle and 1:100 stadia for distance estimation, which means you can dial in your measurements exactly, every time. The automatic level is also water and dust resistant, making it safe to use on nearly any jobsite. This level also comes with a hard-shell carrying case to keep your tool clean and safe when not in use. If you're looking for a tripod and grade rod to accompany the level, consider Johnson Model 40-6963 32x automatic level system.

Johnson Automatic Level, Up to 450 ft Working Range, Magnification: 32X, +/-1/16 in, 200 ft Accuracy, 360 deg Horizontal, 1 deg Horizontal Graduations, 4 ft Minimum Focus, 40 mm Aperture, Field of View: 1 deg at 30 ft, Circular Bubble Vial, 8 Lenses, 5/8-11 Mounting, Orange

Features

  • Water and dust resistant for use in most weather conditions
  • Wire hung, magnetically dampened compensator
  • Large, easy to use focusing knob
  • 360 deg horizontal circle
  • Prism for bubble viewing
  • Top mounted optical sight for quick reference
  • Fine adjustment knobs on left and right sides with endless horizontal drive
  • 1:100 stadia for distance estimation
  • Focusable cross-hairs
Application
For any number of outdoor jobs, including jobsite prep, grading, excavation, landscaping, setting foundations and footers, concrete formwork and more

Manufacturer:  Johnson Level & Tool Mfg Co
Brand:  Johnson

Cou ntry of Orgin:  CN
UPC:  049 448069620
UNSPSC:  27111802
Other Part Numbers:  40-6962 ; 406962 ; 049448069620 ; 04944806962 ; 49448069620

Keywords
40-6962 Automatic Level, Up to 450 ft, Magnification 32X, +/-1/16 in, 200 ft Accuracy, 360 deg Horizontal ; Johnson Level Tool Mfg Co ; Johnson ; 406962 ; 049448069620 ; Optical & Transit Levels & Packages

BrandJohnson®
ColorYellow/Black
FeaturesWater and Dust Resistant
IncludesAutomatic level and hard-shell carrying case
Magnification32X
ProductAutomatic Level
