Johnson®

W/ GLASSES CASE& BATTERIES LEVEL ROTARY LASER KIT

Item #JOH40-6515
Non-Stock

A workhorse for small jobsites, this rotary self levels in the horizontal plane and manually levels in the vertical plane. The rotary also features an illuminated vertical vial and adjustable rotational speeds of 200 rpm, 400 rpm or 600 rpm. Accuracy is never a problem thanks to the visual and audible alarms that alert you when the rotary is beyond its leveling range and the locking pendulum that protects the inner pendulum during transportation. For a complete leveling system, consider Johnson 40-6516 rotary laser kit or 40-6517 rotary laser system.

Johnson Rotary Laser Level, Pendulum Self-Leveling, Up to 200/800 ft Dia, +/-1/8 in at 50 ft Accuracy, (4) AA Alkaline Battery, +/-3 deg Auto Leveling Range, 2 Beam, Red Beam, 635 nm Wavelength, +/-5 deg Maximum Output, Laser Class: Class Illa, 5/8-11 Tripod Screw, 1 Vials, Vial Positions: Horizontal/Vertical, 14 to 113 deg F, ABS, Orange, 6.61 x 4.96 x 6.69 in

Features

  • Self-leveling in horizontal plane
  • Locking mechanism protects inner pendulum during transportation
  • Manual leveling in the vertical plane with 90 deg split beam
  • Visual and audible alarms when beyond leveling range
  • Laser rotates at 200 rpm, 400 rpm, 600 rpm
  • Illuminated vertical vial
  • Up to 200 ft Dia interior/800 ft Dia exterior measuring range
Application
For small jobsites, vertically or horizontally for excavations, landscaping, fence lines, wainscoting, drop ceilings and more

Certification/Standards
CFR 21 Part 1040.10 and 1040.11|IEC 285

Manufacturer:  Johnson Level & Tool Mfg Co
Brand:  Johnson

Cou ntry of Orgin:  CN
UPC:  049 448065158
UNSPSC:  27111802
Other Part Numbers:  40-6515 ; 406515 ; 049448065158 ; 04944806515 ; 49448065158

Keywords
40-6515 Pendulum Self-Leveling Rotary Laser Level, Up to 200/800 ft Dia Measuring, +/-1/8 in at 50 ft Accuracy, +/-3 deg Auto Leveling, 2 Beams, (4) AA Alkaline Battery ; Johnson Level Tool Mfg Co ; Johnson ; 406515 ; 049448065158 ; Rotary & Straight Line Laser Levels

BrandJohnson®
ColorYellow
Features1/8" Accuracy per 50 ft. Self leveling range of +/- 3°.

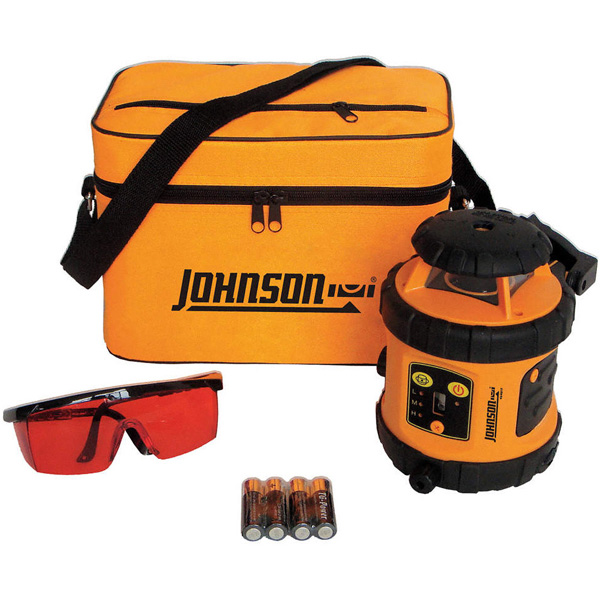

IncludesLaser, tinted glasses, 4 "AA" alkaline batteries, and soft-sided carrying case
Power4 AA Batteries (included)
ProductSelf-Leveling Rotary Laser
Rotation Speed200, 400, 600 rpm
