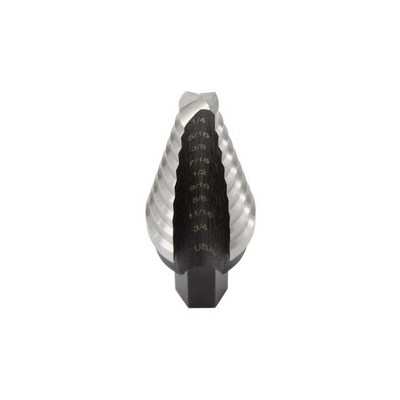

#3 1/4"--3/4"x 1/16"sx 3/8"SHK DRILL, HSS UNIBIT STEPDOWN

Item #IRW10233

Irwin Unibit step drill bits are ideal for drilling holes in just about any type of thin material. General purpose high speed steel Unibit step drill bits are perfect for use in mild steel, copper, brass, aluminum, plexiglass, wood, and laminate. Our titanium nitride coated (TiN) bits resist heat and friction, which extends the life of the cutting edge six times longer than standard step drills. And, our cobalt step drill bits are engineered with m35 cobalt steel for maximum life when drilling in the toughest steel, including stainless steel. Most Unibit step drills are designed with a SpeedPoint tip that guarantees fast starts. Theyre manufactured with a single flute cutting edge that drills multiple sizes of true, round holes with precise step control. Plus, the hole sizes are permanently laser etched on the inside of the flute, so they can be easily identified throughout the life of the bit.

Irwin Unibit Step Drill Bit, Imperial, #3 Letter/Wire, 1/4 in Diameter Minimum Hole, 3/4 in Diameter Maximum Hole, 9 Steps, 1/16 in Step Depth, 9 Hole, 1 Flutes, 3/8 in Shank, Hex Shank, Self-Starting SpeedPoint Point, HSS Cutting Edge, HSS, Bright, Applicable Materials: Aluminum, Brass, Copper, Laminates, Plastic and Stainless Steel


  • Single flute cutting edge for greater control through steps
  • Hex shank prevents slipping in drill chuck
  • Also available with (TiN) coating for longer life
  • New speed point tip penetrates faster than previous Unibit and prevents walking
  • Geometry of single flute cutting edge drills true, round holes and provides maximum step control
  • Laser etched sizes inside flute for easy and permanent hole size identification
For drilling holes into thin materials

Manufacturer:  Stanley Black & Decker
Brand:  Irwin Unibit

Country of Orgin:  US
UPC:  038 548101033
UNSPSC:  23241606
Other Part Numbers:  10233 ; 038548101033 ; 03854810103 ; 38548101033 ; 00038548101033

10233 Step Drill Bit, 1/4 in Dia Min Hole, 3/4 in Dia Max Hole, 9 Steps, HSS, 9 Hole Sizes, 3/8 in Shank ; Stanley Black Decker ; Irwin Unibit ; 10233 ; 038548101033 ; Step Drill Bits

ProductStep-Down Bit
Measurement SystemFractional (Inch)
MaterialHigh Speed Steel
Size1/4" to 3/4"
