GREENLEE®

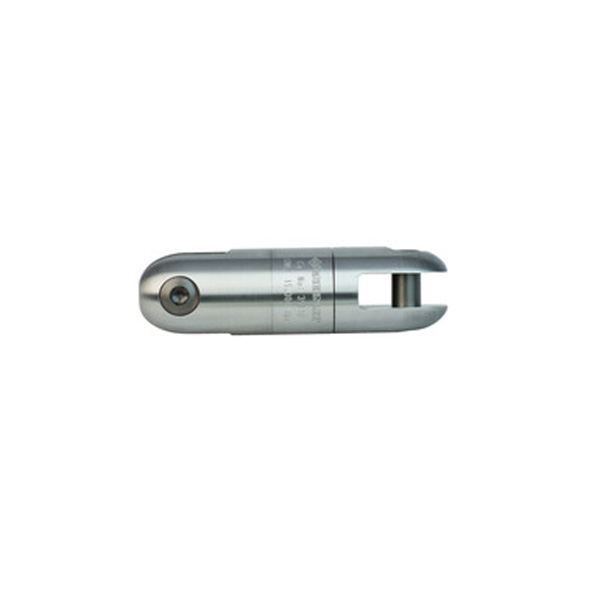

15,000lb SWIVEL, CABLE PULL

Item #GRE39110

The Greenlee swivels, when used with a rope connector, are intended for connecting the pull rope to the utility product in an overhead or underground application. The swivel permits rotation of the pull rope while protecting the product from twisting.

Greenlee Swivel, 15000 lb, 2-1/16 in Eye Length, 25/32 in Eye Width, 2-1/16 in Eye ID, 5-1/8 in Width Between Eyes, Hex Clevis Pin, 7 in Overall Length, Stainless Steel

Features

  • Helps eliminate winding and tangling of rope and cable during pull
  • Connects grip and pulling rope
  • All stainless steel body construction
  • Efficient thrust and roller bearing construction allows smooth rotation, even under full-load
  • Clevis pins are "shoulder bolt" style, so load on both sides of clevis is taken on the shoulder, not on the thread
  • Select the swivel with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
  • 15000 lb underground safe working limit, 9000 lb overhead load safe working limit
  • Shoulder bolt style
Application
For roping to swivel connector

Certification/Standards
ARRA Compliant

Manufacturer:  Greenlee Textron
Brand:  Greenlee

Country of Orgin:  CA
UPC:  783 310391104
UNSPSC:  39121722
Other Part Numbers:  39110 ; 39110 ; 783310391104 ; 78331039110 ; 00783310391104

Keywords
39110 Swivel, 15000 lb, 25/32 in W Eye ; Greenlee Textron ; Greenlee ; 39110 ; 39110 ; 783310391104 ; Swivels & Connectors
