Dixon

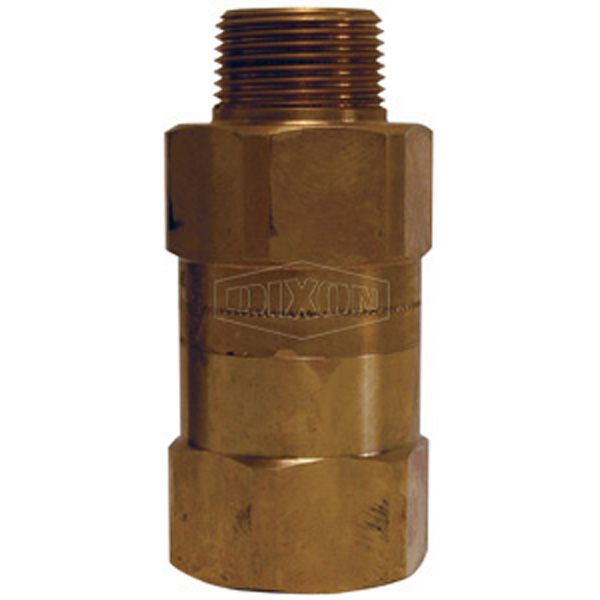

1" NPT MALE xNPT FEMALE VALVE VALVE, CHECK SAFETY BRASS

Item #DIXSCVH8
$73.00 / EA
Quantity:  EA
Restocking

Dixon Safety Check Valve, 1 in Nominal, NPT, 350 psi, 250 deg F, 310 to 340 scfm, Brass Body, 4-1/4 in

Features

  • High flow valve to provide optimum performance
  • Controls excess air flow (scfm) in only one direction
  • Automatically senses change in air flow and shuts off the flow in the event of a surge in excess of valve flow rating thus preventing hose whip
  • Solid brass body and valve
  • Stainless steel spring and roll pin
  • Conforms to OSHA regulation 1926.302 (B) (7) requiring a safety device at the source of the air supply and at branch air lines
  • Does not prevent backflow
  • Prop65: This product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling
Certification/Standards
OSHA 1926.302

Manufacturer:  Dixon Valve & Coupling
Brand:  Dixon

UNSPSC:  40141600
Other Part Numbers:  SCVH8

Keywords< br/>SCVH8 Safety Check Valve, 1 in, NPT, Brass Body ; Dixon Valve Coupling ; Dixon ; SCVH8 ; Specialty Check Valves

BrandDixon
FeaturesHigh Flow Valve, Controls Excess Air Flow (SCFM) in One Direction, Prevents Hose Whip
Max PSI350
ProductSafety Check Valve
Size1"
Weight1.79 lbs
