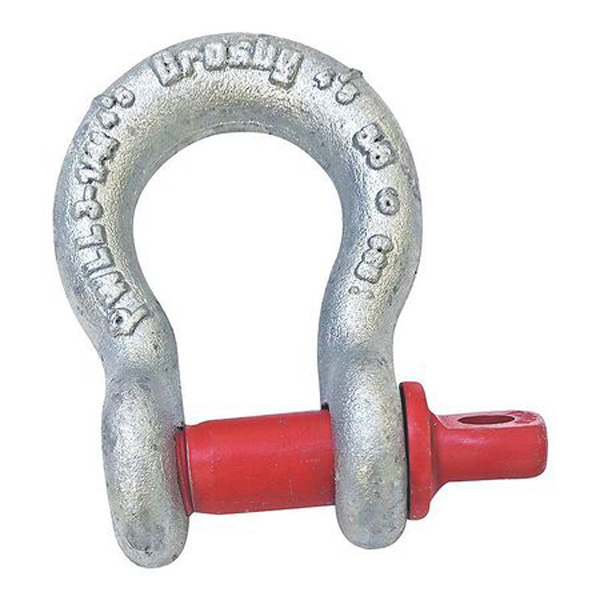

7/8" 6-1/2TON GALV G209 13K LB ANCHOR SHACKLE, CARBON STEEL

Crosby Anchor Shackle, Series: G-209, 6.5 ton Load, 7/8 in Size, 1 in Pin Diameter, Screw Pin, 3-5/16 in Inner Length, 2.28 in Inner Width, 1-7/16 in Opening, 2.09 in Eye Outer, 5.83 in Overall Length, 4-1/2 in Overall Width, Carbon Steel Body, Alloy Pin, Hot Dipped Galvanized

Features

• Working load limit and grade 6 permanently shown on every shackle
• Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification
• Approved for use at -40 to 400 deg F
• 3.25 ton through 25 ton G209 anchor shackles are type approved to DNV certification notes 2.7-1- offshore containers
• The shackles are statistical proof and impact tested to 42 J min average at -4 deg F
• The tests are conducted by Crosby and 3.1 test certified
• All other 209 shackles can meet charpy requirements of 42 J average at -4 deg F upon special request
• Look for the Red Pin the mark of genuine Crosby quality

Application
For pick and place applications and permanent or long term installations

Certification/Standards
AB S/DNV/Lloyds/CE Certified|ASME B30.26|ABS 2007 Steel Vessel Rule 1-11-17.7|DNV Certification Notes 2.7-1|Federal Spec RR-C-271F|Type IVA|Grade A|Class 2

Manufacturer:  Crosby Group
Brand:  Crosby

C ountry of Orgin:  US
UNSPSC:   24101641
Other Part Numbers:  1018516
