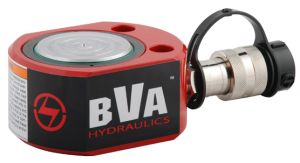

30 TON .51" STROKE HYDRAULIC CYLINDER, FLAT BODY

Base Size	4.00"
Base Size Width	4.00"
Bolt Circle	1.56"
Brand	BVA®
Collapsed Height	4.61"
Cylinder Bore Diameter	2.50"
Cylinder Effective Area (In.2)	6.49
Dimensions	4.61" x 4.00"
Hydraulic Lifting	2.44"
Internal Pressure at Capacity	9,245 PSI
Lifting Capacity	30 Ton
Lifting Height Maximum	7.05"
Lifting Height Minimum	4.61"
Oil Capacity (In.3)	15.84
Outside Diameter	4.00"
Piston Stroke	2.44"
Plunger Diameter	2.50"
Product	Flat Body Cylinder
Saddle Diameter	2.50"
Stroke	2.44"
Thread	3/8" NPTF
Weight	15.0 lbs
