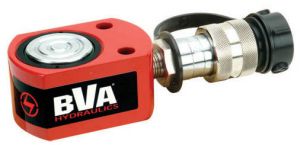

10 TON .43" STROKE HYDRAULIC CYLINDER, FLAT BODY

Base Size	3.3"
Base Size Width	2.2"
Brand	BVA®
Collapsed Height	1.69"
Cylinder Bore Diameter	1.73"
Cylinder Effective Area (In.2)	2.36
Dimensions	3.3" x 2.2"
Hydraulic Lifting	0.43"
Internal Pressure at Capacity	8,470 PSI
Lifting Capacity	10 Ton
Lifting Height Maximum	2.12"
Lifting Height Minimum	1.69"
Oil Capacity (In.3)	1.01
Outside Diameter	3.3" x 2.2"
Piston Stroke	0.43"
Plunger Diameter	1.5"
Product	Flat Body Cylinder
Saddle Diameter	1.12"
Stroke	0.43"
Weight	3.3 lbs
