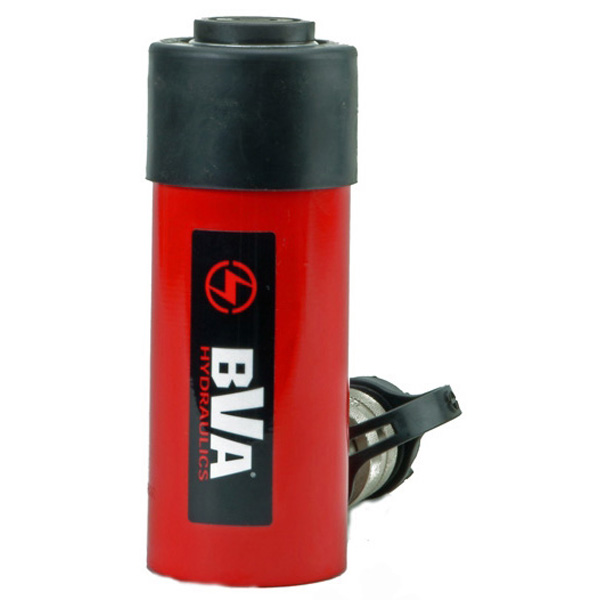

10 TON 2" STROKE HYDRAULIC CYLINDER, SINGLE ACTING

Item #BVAH1002
$328.06 / EA
Quantity:  EA
Non-Stock

BVA Hydraulic Cylinder, Single Acting, Series: H Series, 10 ton Capacity, 1.69 in Bore, 2.01 in Stroke Length, Surface Mounting, 0.77 in Port, 1.49 in Rod Diameter, 10000 psi Pressure, Steel Housing Material

Features

  • Plunger wipers help seal out dirt
  • Rod wiper seals out dirt and contamination
  • 2-base mounting holes on most models
  • High strength steel construction from gun drilled solid bar
  • 1-piece high grade alloy bearing for side load protection and long life
  • Polyurethane cup seal provides for optimum performance
  • Industrial hard chrome plated rod helps prevent rust and corrosion
  • Heavy duty return spring provides quicker retraction
Application
Lifting and Pressing Applications

Certification/Standards
PRO P65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Manufacturer: &n bsp;BVA Hydraulics
Brand:  BVA

UPC:  047077520055
UNSPSC:&nb sp; 27121602
Other Part Numbers:  H1002 ; 047077520055 ; 04707752005 ; 47077520055

Keywords
H1002 H Series Single Acting Hydraulic Cylinder, 10 ton, 1.69 in Bore, 2.01 in L Stroke, 1.49 in Dia Rod, 10000 psi ; BVA Hydraulics ; BVA ; H1002 ; 047077520055 ; Hydraulic Welded Cylinders

Base Size2.26"
Bolt Circle1.56"
BrandBVA®
Collapsed Height4.84"
Cylinder Bore Diameter1.69"
Cylinder Effective Area2.24
Cylinder TypeSingle Acting
Extended Height6.85"
Hydraulic Lifting2.01"
Internal Pressure at Capacity8,928 PSI
Lifting Capacity10 Ton
Lifting Height Maximum6.85"
Lifting Height Minimum4.84"
Oil Capacity (In.3)4.5
Outside Diameter2.26"
Piston Stroke2.01"
Plunger Diameter1.49"
ProductHydraulic Cylinder
Saddle Diameter1.38"
Stroke2"
Thread3/8" NPTF
Weight5.1 lbs
